The installation rig arrives on site with a rotary-percussive head capable of drilling through Aberdeen's tough granite till. Our anchor design process starts before the first casing is advanced, factoring in the city's typical soil profile of glacial deposits overlying the Dalradian basement. In many areas near the River Dee, loose alluvial silts demand a different approach than the stiff boulder clays found further west. We specify active anchors when immediate load transfer is critical, and passive systems where ground deformation can be tolerated. Before finalising any design, a ground investigation with SPT drilling is essential to confirm the overburden strength and depth to bedrock.
A well-designed anchor in Aberdeen's glacial till transfers load beyond the active failure wedge—bond length must be verified by on-site suitability testing, never assumed.
Our approach and scope
Site-specific factors
BS EN 1997-1:2004 (Eurocode 7) requires that the design of anchored structures in Aberdeen considers the ultimate limit state of anchor pull-out, a failure mode that is particularly relevant along the steep slopes of the Dee Valley. The city's glacial history has left a legacy of soft, normally consolidated clays in some buried channels, where creep under sustained load can reduce the anchor force over time. We address this by specifying a rigorous testing regime: every anchor undergoes an acceptance test, and at least one in ten is subjected to an extended creep test as outlined in BS 8081. The interaction between the fixed anchor and the surrounding ground is modelled using load-transfer methods, ensuring that the design bond stress does not exceed the ultimate value divided by a partial factor appropriate for the ground uncertainty.
Regulatory framework
BS 8081:2015 – Code of practice for grouted anchors, BS EN 1997-1:2004 (Eurocode 7) – Geotechnical design, BS 5930:2015 – Code of practice for ground investigations, BS EN 1537:2013 – Execution of special geotechnical work – Ground anchors
Complementary services

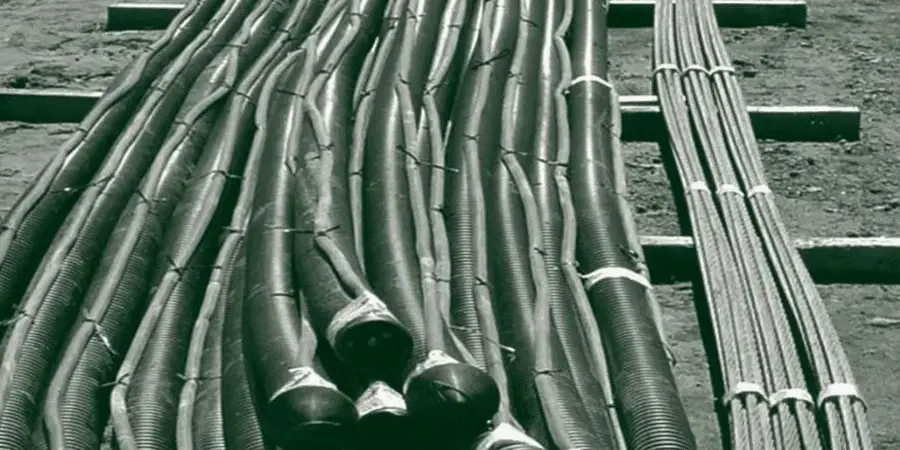

Active anchor design
Prestressed systems for retaining walls and bridge abutments. We calculate lock-off loads considering long-term relaxation losses in the Aberdeen soil environment.
Passive anchor design
Non-prestressed solutions for soil nailing and slope stabilisation. Design is based on the strain compatibility between the ground and the reinforcement.
Suitability and acceptance testing
On-site proof testing to BS 8081 procedures. We specify test anchors, cyclic loading schedules, and extended creep tests for the specific ground conditions.
Numerical modelling of anchored systems
2D and 3D finite element analysis of anchor performance in complex geometries, such as deep excavations adjacent to existing structures in central Aberdeen.
Typical parameters
Common questions
What is the difference between active and passive anchors?
Active anchors are prestressed after installation to apply an immediate compressive load to the structure, minimising ground movement. They are typically used for retaining walls and bridge abutments. Passive anchors are not prestressed; they develop their resisting force only when the ground starts to move, making them suitable for soil nailing and slope stabilisation where some deformation is acceptable.
How does the granite bedrock in Aberdeen affect anchor design?
The Dalradian granite and associated metamorphic rocks provide excellent bond capacity once penetrated, but the overlying glacial till is highly variable. Our designs must account for a potentially abrupt change in drilling difficulty and grout take at the rockhead interface. We often specify a rotary-percussive drilling method and a grout mix with controlled bleed to ensure a continuous bond length across this transition zone.
What is the typical cost range for anchor design services in Aberdeen?
A complete anchor design package, including interpretative ground model, bond length calculations, and a site testing specification, typically ranges from £870 to £2,720 depending on the number of anchors and the complexity of the ground conditions.
